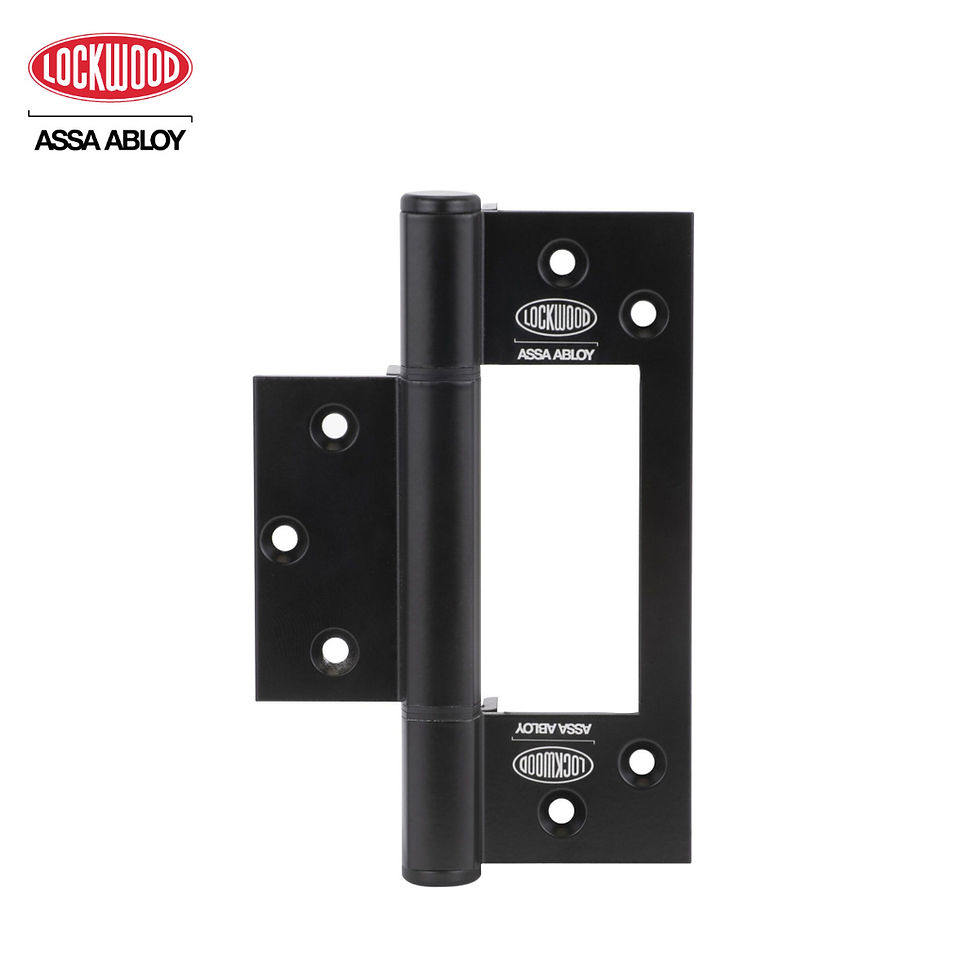

Lockwood AH130 Aluminium Hinge (Fast Fix)
The Lockwood AH130 is a heavy duty fast fix hinge with bi-directional face fix flanges to suit aluminium commercial door applications.
Installation Guide
Up to 2100 (H) x 900 (W) x 100kg = 3 hinges
Up to 2400 (H) x 900 (W) x 100kg = 4 hinges
Technical Specification
Squareline heavy duty knuckles
Interference pressed fit aluminium end caps
Manufacturer: Lockwood
Material: 6063-T6 Aluminium Alloy
Hinge Pin: 6mm 304 Grade Stainless Steel Pin and Nylon Bushes
Dimensions: 130mm (H) x 50mm (W) x 3mm (T)
Type: Fast Fix Aluminium Hinge
Fixing: Heavy Duty Bi-directional fixing with Face-fix locator flange for faster installation
Max. Door Weight: 100kg
Min. Door Thickness: 40mm
